高性能球閥防火球閥

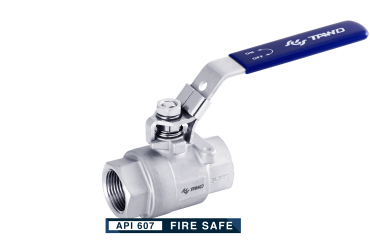

防火系列 - R701 ( 兩片式球閥 ): Size Range : NPS 1/4 to 2 ( DN 8 to 50 ); Pressure Rating : WOG 800, 1000; Valve Type : Full Bore; Body & End Cap Material ( ASTM ) : CF8M, CF3M, CF8, CF3, WCB; Body & End Cap Material ( EN ) : 1.4408, 1.4409, 1.4308, 1.4309, 1.0619; Seat Material : PTFE, RTFE, CTFE, TFM1600, MG1241, STFE; Handle Type : Flat ( with / without SR Lock ), Economical Stem Extension; Handle Material: Flat - 304, 316; V-Port Option : N/A; With Anti-static Device Option : Yes; Certification : CE, SIL 3, ATEX, API 607, ISO 10497 ( Remark when required )

證書: SIL | Safety Integrity Level; ATEX | 2014/34/EU; Series R701 | ISO 10497 - WCB; Series R701 | ISO 10497 - CF8M; Series R701 | API 607 - WCB; Series R701 | API 607 - CF8M

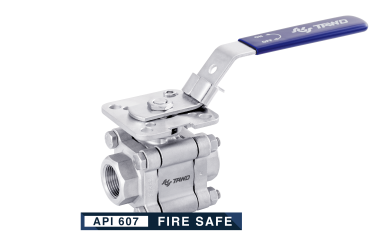

防火系列 - S300 ( 三片式球閥 ): Size Range : NPS 1/4 to 2 ( DN 8 to 50 ); Pressure Rating : WOG 1500, 2000; Valve Type : Full / Reduced Bore; Body & End Cap Material ( ASTM ) : CF8M, CF3M, CF8, CF3, WCB, CN7M, CD3MN, CE3MN, CW12MW, 904L, LCC, Titanium Alloy (Gr. C-2); Body & End Cap Material ( EN ) : 1.4408, 1.4409, 1.4308, 1.4309, 1.0619, 1.4470; Seat Material : PTFE, RTFE, CTFE, TFM1600, MG1241, STFE, PEEK, Delrin, UHMWPE, PCTFE; Handle Type : Flat ( with / without SR lock ) , Oval, Cast, T-Bar, Economical Stem Extension; Handle Material : Flat, Oval, T-Bar - 304, 316, Cast - CF8, CF8M; V-Port Option : Yes; With Anti-static Device Option : Yes; Certification : CE, SIL 3, ATEX, API 607, ISO 10497 ( Remark when required )

證書: SIL | Safety Integrity Level; ATEX | 2014/34/EU; Series S300 | ISO 10497 - CD3MN; Series S300 | ISO 10497 - WCB; Series S300 | ISO 10497 - CF8M; Series S300 | API 607 - CD3MN; Series S300 | API 607 - WCB; Series S300 | API 607 - CF8M

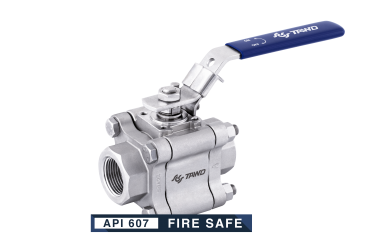

防火系列 - S400 ( 三片式球閥 ): Size Range : NPS 1/4 to 4 ( DN 8 to 100 ); Pressure Rating : WOG 1000, 1500, 2000; Valve Type : Full Bore / Reduced Bore; Body & End Cap Material ( ASTM ) : CF8M, CF3M, CF8, CF3, WCB, CN7M, CD3MN, CE3MN, CW12MW, 904L, LCC, Titanium Alloy (Gr. C-2); Body & End Cap Material ( EN ) : 1.4408, 1.4409, 1.4308, 1.4309, 1.0619, 1.4470; Seat Material : PTFE, RTFE, CTFE, TFM1600, MG1241, STFE, PEEK, Delrin, UHMWPE, PCTFE; Handle Type : Flat ( with / without SR Lock ), Oval, Cast, T-Bar, Spring Return Safety (SRS) Handle, Economical Stem Extension; Handle Material : Flat , Oval, T-Bar - 304, 316, Cast - CF8, CF8M; V-Port Option : Yes; With Anti-static Device Option : Yes; Certification : CE, SIL 3, ATEX, API 607, ISO 10497 ( Remark when required )

證書: Series S400 | API 607 - CE3MN; Series S400 | API 607 - CE3MN ( Double Body Seals ); Series S400 | ISO 10497 - CE3MN; Series S400 | ISO 10497 - CE3MN ( Double Body Seals ); Series S400 | ISO 10497 - CF8M; Series S400 | ISO 10497 - WCB; SIL | Safety Integrity Level; ATEX | 2014/34/EU; Series S400 | API 607 - WCB; Series S400 | API 607 - CF8M

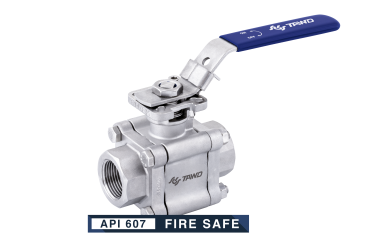

防火系列 - S60X-XF ( 三片式球閥 ): Size Range : NPS 1/4 to 4 ( DN 8 to 100 ); Pressure Rating : WOG 1000, 1500, 2000; Valve Type : Full / Reduced Bore; Body & End Cap Material ( ASTM ) : CF8M, CF3M, CF8, CF3, WCB, CN7M, CD3MN, CE3MN, CW12MW, 904L, LCC, Titanium Alloy (Gr. C-2); Body & End Cap Material ( EN ) : 1.4408, 1.4409, 1.4308, 1.4309, 1.0619, 1.4470; Seat Material : PTFE, RTFE, CTFE, TFM1600, MG1241, STFE, PEEK, Delrin, UHMWPE, PCTFE; Handle Type : Flat ( with / without SR Lock ), Oval, Cast, T-Bar, Spring Return Safety (SRS) Handle, Economical Stem Extension; Handle Material : Flat, Oval, T-Bar - 304, 316, Cast - CF8, CF8M; V-Port Option : Yes; With Anti-static Device Option : Yes; Certification : CE, SIL 3, ATEX, API 607, ISO 10497 ( Remark when required )

證書: Series S600 | API 607 - CE3MN; Series S600 | API 607 - CE3MN ( Double Body Seals ); Series S600 | ISO 10497 - CE3MN; Series S600 | ISO 10497 - CE3MN ( Double Body Seals ); SIL | Safety Integrity Level; ATEX | 2014/34/EU; Series S600 | ISO 10497 - WCB; Series S600 | ISO 10497 - CF8M; Series S600 | API 607 - WCB; Series S600 | API 607 - CF8M

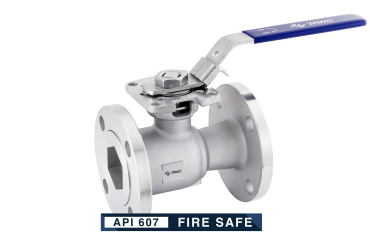

防火系列 - F303 ( 法蘭球閥 ): Size Range : NPS 1/2 to 6 ( DN 15 to 150 ); Pressure Rating : CLASS 150, CLASS 300; Valve Type : Reduced Bore; Body & End Cap Material ( ASTM ) : CF8M, CF3M, CF8, CF3, WCB, CN7M, CD3MN, CE3MN, CW12MW, 904L, LCC, Titanium Alloy (Gr. C-2); Body & End Cap Material ( EN ) : 1.4408, 1.4409, 1.4308, 1.4309, 1.0619, 1.4470; Seat Material : PTFE, RTFE, CTFE, TFM1600, MG1241, STFE, PEEK, Delrin, UHMWPE, PCTFE; Handle Type : Flat ( with / without SR Lock ), T-Bar, Economical Stem Extension; Handle Material : Flat & T-Bar - 304, 316; V-Port Option : N/A; With Anti-static Device Option : Yes; Certification : CE, SIL 3, ATEX, API 607, ISO 10497 ( Remark when required )

證書: SIL | Safety Integrity Level; ATEX | 2014/34/EU; Series F303 | API 607 - WCB; Series F303 | ISO 10497 - WCB; Series F303 | ISO 10497 - CF8M; Series F303 | API 607 - CF8M

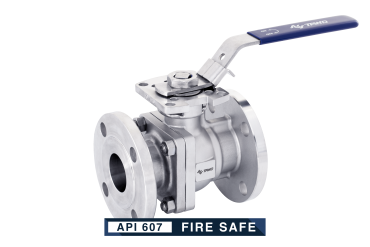

防火系列 - F501 ( 法蘭球閥 ): Size Range : NPS 1/2 to 4 ( DN 15 to 100 ); Pressure Rating : CLASS 150 / PN16, PN40; Valve Type : Full Bore; Body & End Cap Material ( ASTM ) : CF8M, CF3M, CF8, CF3, WCB, CN7M, CD3MN, CE3MN, CW12MW, 904L, LCC, Titanium Alloy (Gr. C-2); Body & End Cap Material ( EN ) : 1.4408, 1.4409, 1.4308, 1.4309, 1.0619, 1.4470; Seat Material : PTFE, RTFE, CTFE, TFM1600, MG1241, STFE, PEEK, Delrin, UHMWPE, PCTFE; Handle Type : Flat ( with / without SR Lock ), Oval, T-Bar, Economical Stem Extension; Handle Material : Flat, Oval, T-Bar - 304, 316; V-Port Option : Yes; With Anti-static Device Option : Yes; Certification : CE, SIL 3, ATEX, API 607, ISO 10497 ( Remark when required )

證書: SIL | Safety Integrity Level; Series F501 | ISO 10497 - WCB; ATEX | 2014/34/EU; Series F501 | ISO 10497 - CF8M; Series F501 | API 607 - WCB; Series F501 | API 607 - CF8M

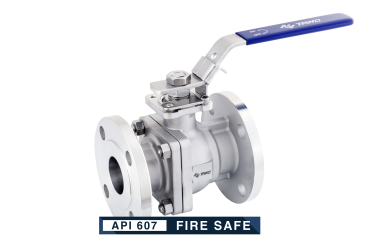

防火系列 - F502 ( 法蘭球閥 ): Size Range : NPS 1/2 to 12 ( DN 15 to 300 ); Pressure Rating ( ANSI ) : CLASS 150, 300, 600; Pressure Rating ( DIN ) : PN16, 40; Pressure Rating ( JIS ) : 10K; Valve Type : Full Bore; Body & End Cap Material ( ASTM ) : CF8M, CF3M, CF8, CF3, WCB, CN7M, CD3MN, CE3MN, CW12MW, 904L, LCC, Titanium Alloy (Gr. C-2); Body & End Cap Material ( EN ) : 1.4408, 1.4409, 1.4308, 1.4309, 1.0619, 1.4470; Seat Material : PTFE, RTFE, CTFE, TFM1600, MG1241, STFE, PEEK, Delrin, UHMWPE, PCTFE; Handle Type : Flat ( with / without SR Lock ), Oval, Cast, T-Bar, Economical Stem Extension; Handle Material : Flat, Oval, T-Bar - 304, 316, Cast - CF8, CF8M; V-Port Option : Yes; With Anti-static Device Option : Yes; Certification : CE, SIL 3, ATEX, API 607, ISO 10497 ( Remark when required )

證書: Series F502 | API 607 - CE3MN; Series F502 | ISO 10497 - CE3MN; Series F502 | ISO 10497 - CF8M; Series F502 | ISO 10497 - WCB; Series F502 | API 607 - WCB; Series F502 | API 607 - CF8M

高性能球閥 防火球閥
